The Ariane 6 central core (composed of the core stage and upper stage), assembled and left the Launcher Assembly Building for the first time, en route to its new launch pad, which was built under the supervision of CNES, the French space agency, at Europe’s Spaceport in French Guiana. This decisive and keenly awaited step was carried out by ESA and executed by an integrated ESA-ArianeGroup-CNES team.
“The first encounter between Ariane 6 and its launch pad is a particularly important and symbolic step, after years of parallel development at the factories in Europe and on this exceptional construction site. We are now entering a phase of high visibility, with the complete launcher on its launch pad. During these combined tests, we will continue to verify the innovative technologies developed together, with a view to Ariane 6 qualification. This phase is essential not only for the development of the launcher, in the run-up to its inaugural flight, but also to guarantee ramp-up in line with the expectations of Arianespace’s institutional and commercial customers. During this crucial period, all of the teams at ArianeGroup, CNES and ESA, are hard at work to ensure that the combined tests are a success, thanks to their diverse skills and close and fruitful collaboration. I thank them for their efforts and their unparalleled expertise.”
says Adré-Hubert Rousell, ArianeGroup CEO.
“The ELA4 launch pad is welcoming the arrival of Ariane 6, a launcher that represents the future of access to space for a whole continent. A crucial and concrete step in the continuation of the program is now complete. I would like to congratulate all the teams at CNES, ArianeGroup, and ESA who are contributing to this new success. Combined tests are continuing within the framework of European space collaboration, and everything is in place to ensure that the qualification of Ariane 6 leads to the first flight as soon as possible, beginning an adventure that will ensure Europe continues to rank among the world leaders in access to space.”
says Philippe Baptiste, Chairman and CEO of CNES.
“I am delighted to see solid progress towards the first flight. Ariane 6 marks a new era in reliable, competitive and autonomous European spaceflight. Ariane 6 is also the foundation for a series of developments which will maintain Europe’s gateway to space into the 2030s.”
says Daniel Neuemschwander ESA’s Director of Space Transportation.

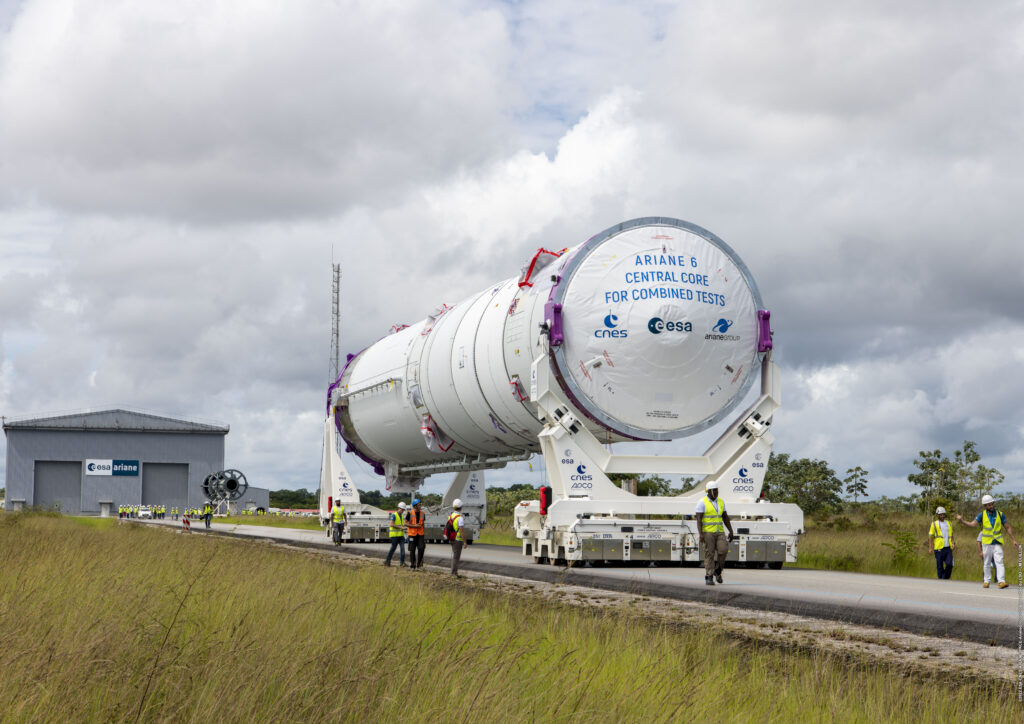

After the Launcher Assembly Building (BAL) doors were opened, the Ariane 6 central core, comprising two assembled cryogenic stages (core and upper), traveled in a horizontal position to its launch pad 800 meters away at a speed of 3 km/h, a journey lasting some twenty minutes, by means of four automatic guided vehicles (AGVs).

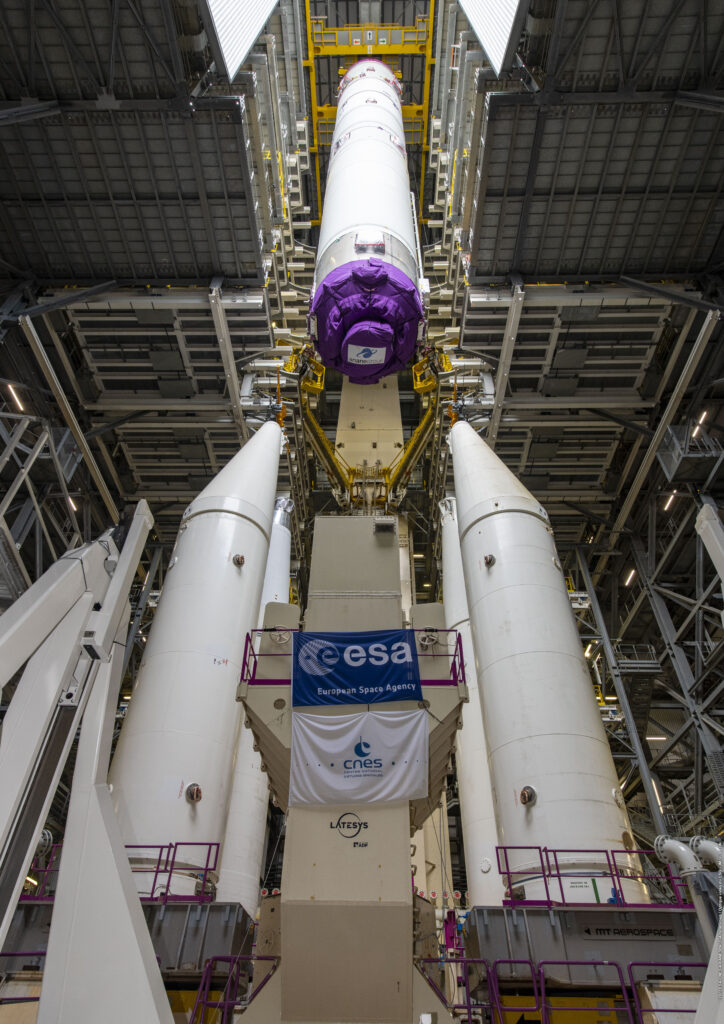

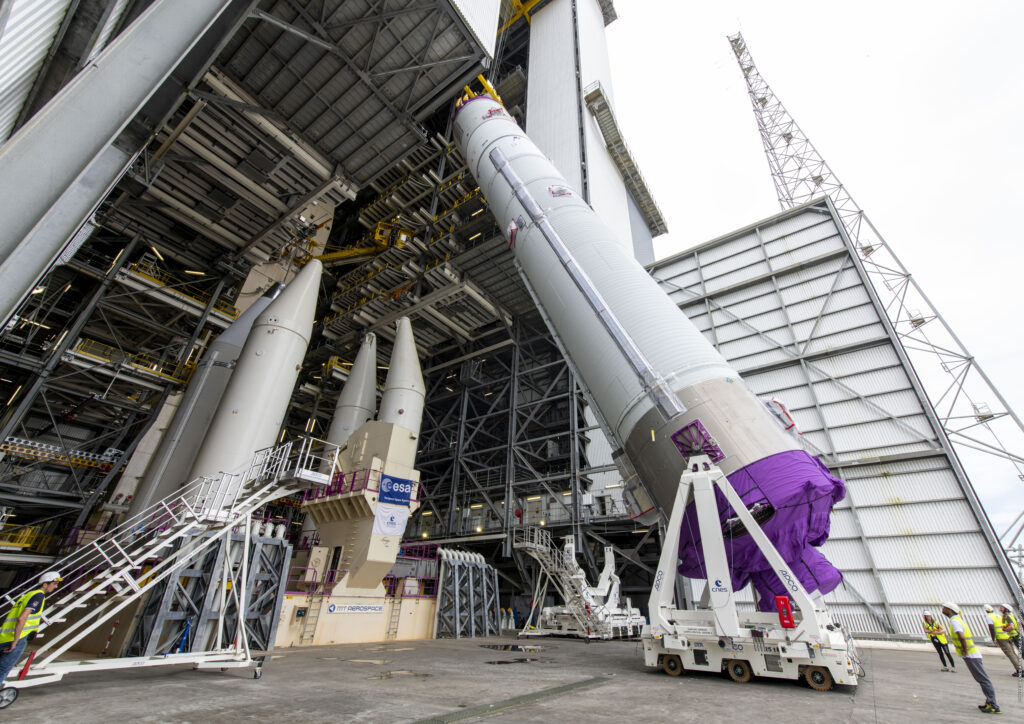

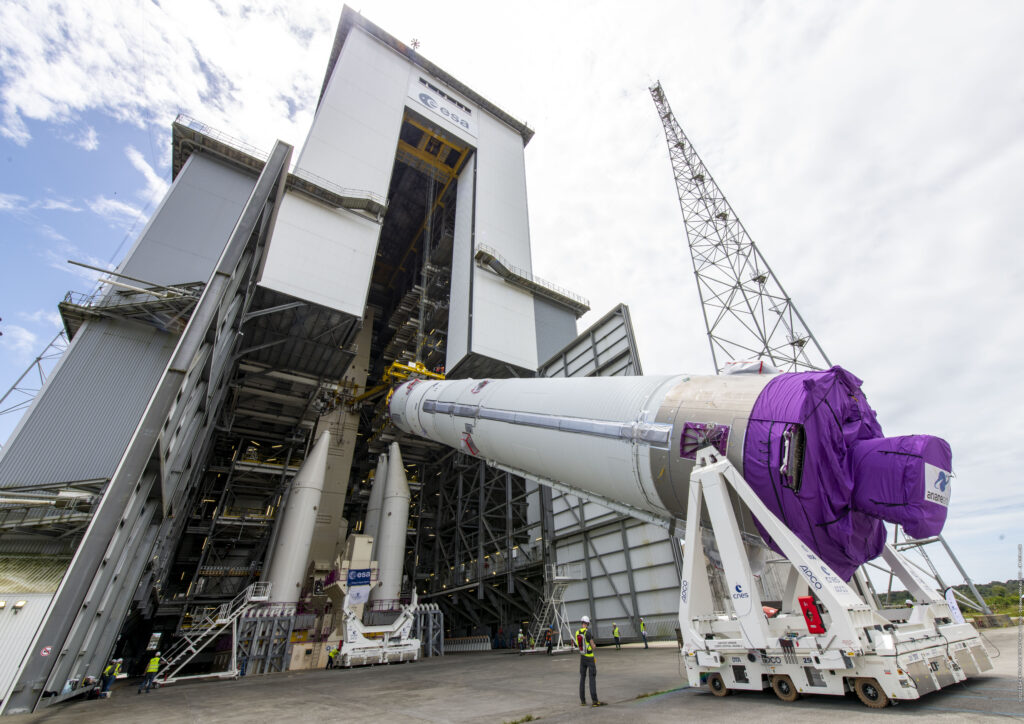

The central core was then positioned vertically on its launch pad, an operation carried out by two AGVs and a crane equipped with a spreader bar, enabling the central core to transition from the horizontal to the vertical position. The vehicle was then rotated 180 degrees to allow its connection to the launch pad’s filling-drainage umbilical lines.

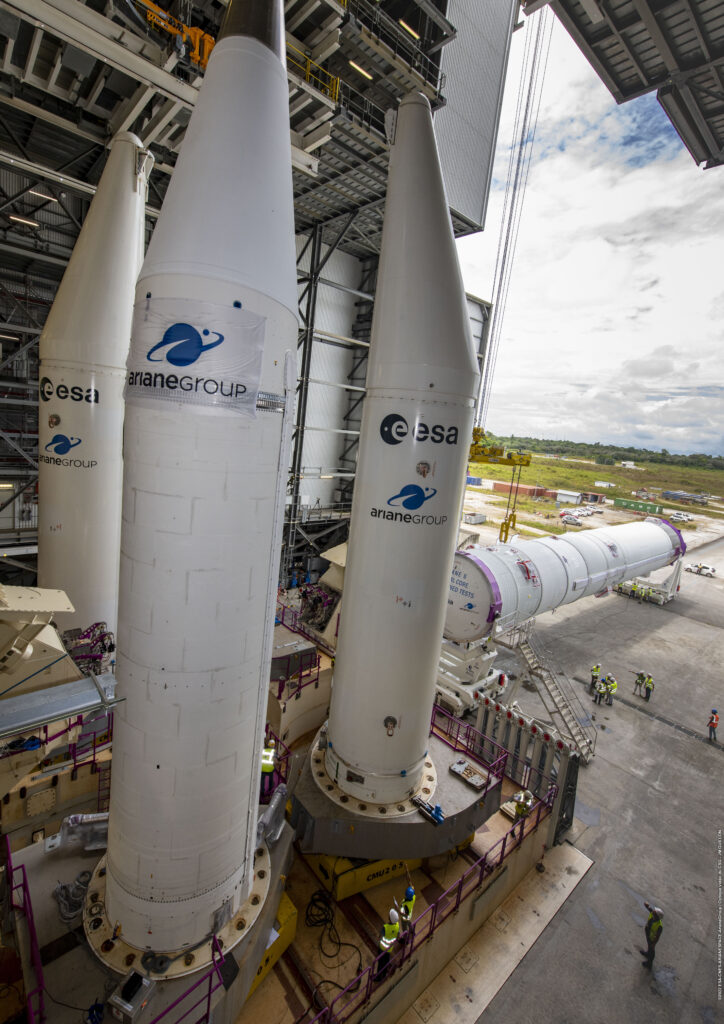

This involves three mock-ups (pylons) and the first P120C ESR (Equipped Solid Rocket) model for Ariane 6 transported vertically to the launch pad on 2 July. It is entirely representative of a flight model, but contains only inert materials for the purposes of the combined tests.
The vertical transition of the central core on its launch pad illustrates one of the major changes in the launcher’s final assembly process, thus helping to meet the Ariane 6’s industrial efficiency objectives.
The purpose of the combined tests is to check all the interfaces and communications between the Ariane 6 launcher and its launch pad. The flight software, control bench software and tank filling and drainage operations will also be tested, as they are vital for the correct performance of a launch sequence.
The next step will be the installation of the upper composite – which consists primarily of the fairing and the payload – directly on the central core. Once tanks are filled, Vulcain 2.1 engine will then be ignited, with the launch pad being used for the first time as a test bed, although there will obviously be no lift-off.
The hot-fire tests of the full Ariane 6 upper stage are also being prepared at the German space agency (DLR) site in Lampoldshausen.
Ariane 6 is a program managed by the European Space Agency (ESA), which is responsible for the entire architecture of the launch system and its funding. As industrial prime contractor and design authority for the launcher, ArianeGroup is responsible for development and production with its industrial partners, as well as for operations through its subsidiary Arianespace. The French space agency CNES is responsible for the construction of the launch pad in French Guiana.
