By Andrew Griggs, Head of Mission Assurance, and Adam London, Founder and Chief Technical Officer
After over six months of rigorous testing and analysis, Astra has received a formal closure letter from the FAA concluding the TROPICS-1 mishap investigation.
The TROPICS-1 mission launched on June 12, 2022 on Astra’s Rocket 3.3, serial number LV0010. The rocket completed a nominal first stage flight, stage separation, and upper stage ignition. Shortly after the ignition of the upper stage engine, the upper stage’s fuel consumption rate increased and remained anomalously high for the remainder of the flight. About 250 seconds after upper stage ignition, the stage exhausted its fuel supply with approximately 20% of the liquid oxygen still remaining onboard. As a result, the upper stage was only able to obtain about 80% of the required orbital The stage was unable to deliver its payloads to orbit, and subsequently re-entered the atmosphere, ending the mission.
Our analysis showed that the anomalous fuel consumption during the upper stage flight was due to a combustion chamber wall burn-through that occurred 18 seconds into upper stage flight. Flight data showed that the burn-through was precipitated by a substantial blockage of the fuel injector. The mechanics of combustion and regenerative cooling are complex and this failure did not have an immediately apparent root cause, so extensive testing and analysis was required to recreate the failure mode and to understand both how the injector blockage was created and how it led to a burn-through.

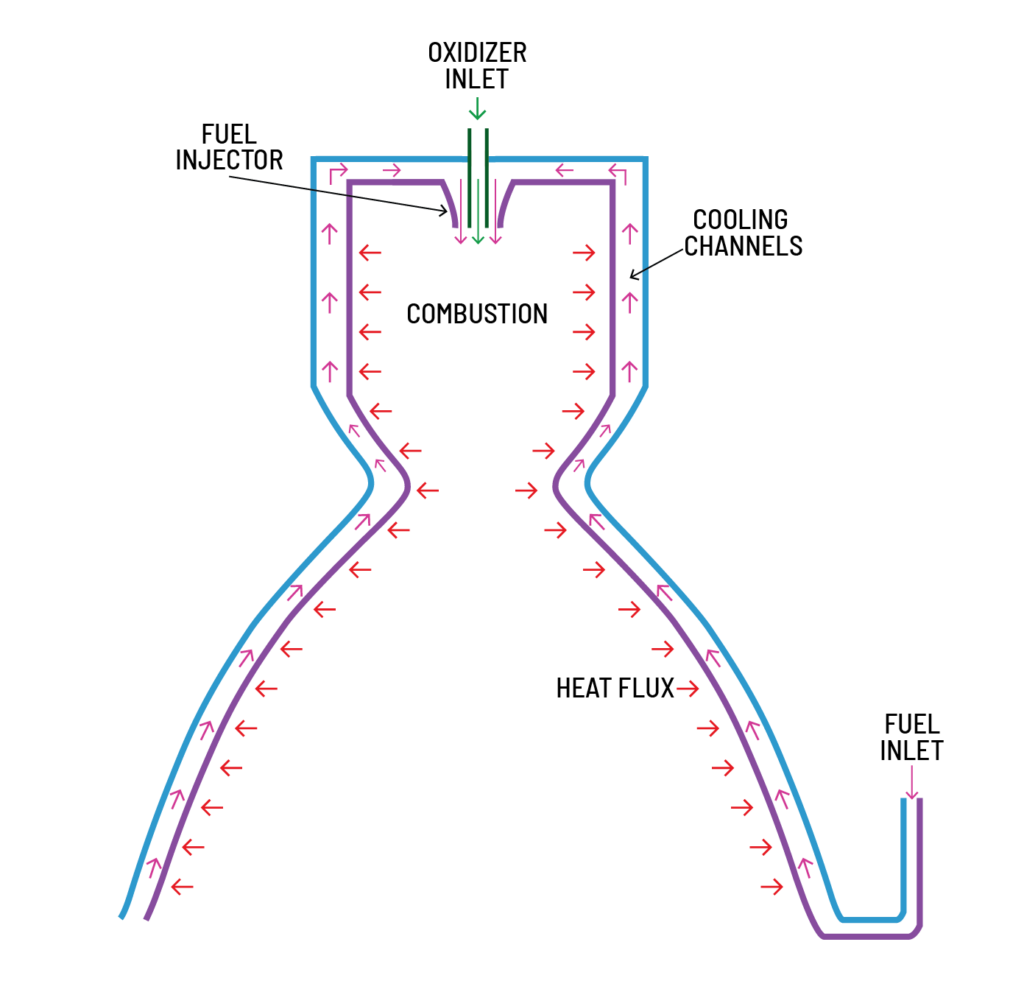

About regenerative cooling
Let’s begin with a quick primer on regenerative cooling. Most liquid rocket engines require cooling to prevent the very hot combustion gases from melting the chamber wall and causing the engine to fail. Rocket 3.3’s upper stage engine used regenerative cooling to accomplish this. In a regeneratively-cooled rocket engine, cooling is achieved by routing the fuel through many cooling channels embedded within the combustion chamber wall. This allows heat from the wall to be absorbed into the flowing fuel, keeping the wall at a low enough temperature to prevent failure.
On TROPICS-1, a failure of the regenerative cooling system led to a chamber burn-through.
What caused the burn-through?
Astra concluded that the primary factor leading to the combustion chamber burn-through was a partial blockage of the injector. When the fuel injector is partially blocked, the rate of fuel passing through the cooling channels decreases. This reduces the amount of heat the fuel can absorb and makes the combustion chamber wall hotter. If the wall gets hot enough, the temperature of the wall can exceed the local boiling point of the fuel, causing some of the fuel to . Sometimes this condition can , because a small amount of boiling can actually enhance the cooling ability of the fuel, bringing the wall temperature back down. However, if too much of the fuel boils, its cooling capability is significantly and adversely impacted, and the wall temperature can go up and up until the wall fails and “burns through,” dumping a portion of the fuel flow directly into the combustion chamber – essentially wasting it. This is what we determined had occurred during the TROPICS-1 launch.
In addition to the partial blockage of the injector, Astra determined that a secondary factor for the burn-through was thermal barrier coating erosion. Portions of the upper stage engine’s combustion chamber have a thermal barrier coating on the inside to insulate the chamber wall and reduce the heat that the fuel is required to absorb as a coolant. If some thermal barrier coating is missing, even a very small amount, that portion of the wall can get and increase the likelihood of a local burn-through. During the investigation, Astra found that there was a small amount of missing thermal barrier coating on the LV0010 upper stage engine. This missing coating was in a location that was considered acceptable at the time, but further analysis showed that we had underestimated the coating in this region under flight conditions (more on the ground vs. flight differences in the next section).
What caused the injector blockage?
While it was relatively straightforward to determine that a blockage of the injector had occurred during upper stage flight, it took much longer to conclusively determine what had caused the blockage. We used a combination of analysis and testing to systematically investigate each potential blockage source. Three credible sources for the blockage were the focus of this investigation:
- Foreign object debris (“FOD”), such as particles of metal
- Gaseous helium
- Gaseous fuel
After a review of flight results and testing to recreate the failure, we were able to conclude that the injector blockage was caused by a gas. This ruled out solid foreign object debris such as metal particles.
Next we examined helium, which is used for the upper stage’s pneumatic and pressurization systems, and theoretically could have leaked into the fuel lines. We performed a barrage of tests on our pneumatic systems, attempting to cause helium to leak under flight-like conditions of vacuum, vibration, and low temperatures. We were unable to substantiate any meaningful leaks, nor did data from the LV0010 upper stage indicate any leaks before or during flight. The only other credible source of helium in the upper stage is in the pressurization system, found at the start of upper stage flight in a small “ullage” bubble at the top of the fuel tank. Analysis showed it is highly unlikely that this helium could migrate to the bottom of the tank and be ingested into the engine at the beginning of the burn. Even if it had migrated, it’s even more unlikely that this helium could have remained in the bottom of the tank and sustained the injector blockage for the amount of time seen in flight (helium, since it’s much lighter than fuel, tends to migrate toward the top of the tank as soon as the engine lights and the stage begins accelerating).
So, we were left with gaseous fuel as the main suspect. During ground acceptance testing, the fuel in the upper stage engine gets warm but we had never observed boiling or near-boiling within the cooling channels. However, the exhaust jet of the upper stage engine on the ground is “separated” from nozzle by the pressure of the atmosphere around it, and therefore transfers less heat into the fuel. In flight, the engine is surrounded by vacuum and the exhaust “fully attached” to . Therefore, the fuel passing through the engine during flight is heated to a higher temperature than during ground testing.
We conducted numerous experimental engine tests with fuel pre-heated to various temperatures to simulate the effect of full attachment. This allowed us to create a more sophisticated thermal model to predict the temperature of the fuel inside the engine with better accuracy than before. This analysis showed that, in flight, the fuel at the injector would have thin margins with respect to its boiling point. The most significant contributors to this thin margin were unique to the Rocket 3 architecture: a pressure-fed upper stage engine that operates at relatively low pressures, as well as the selection of a kerosene-like fuel with a higher vapor pressure than traditional rocket-grade kerosene (e.g. RP-1) to simplify testing and operations.
Given this thin margin, small factors — like the warm sunny weather in Cape Canaveral on the day of launch, which meant the fuel was slightly warmer than in prior flights – helped to tip the fuel over into a boiling regime on the TROPICS-1 mission. Our analysis has concluded that the boiling fuel caused the partial injector blockage in flight caused a thermal “run-away” event that worsened the injector blockage and eventually led to the burn-through.
Upper stage engine testing shows streaks of molten metal from a hot wall burn-through event
Lessons learned
Almost immediately following the TROPICS-1 mishap, we made the strategic decision to focus the majority of Astra’s resources on developing Astra’s next-generation launch vehicle: Rocket 4. We focused the TROPICS-1 investigation on learning all that we could to inform the design and operation of this new, larger, and more reliable rocket. To that end, Rocket 4 incorporates key architectural choices (most notably, a different upper stage engine design and a different fuel) that completely eliminate the causes of this mishap.
This was easily the most complex investigation that Astra has ever conducted. We were committed to rigorously and thoroughly investigating the cause of this mishap, and produced an incredible amount of analysis and test results to understand the failure and support our conclusions. Although we came to the preliminary conclusion of an injector blockage and a chamber burn-through quite quickly, we spent several additional months to ensure that we learned everything we could from this launch failure and left no stone unturned. I am thankful for the team’s hard work and we are grateful for the support and partnership of NASA and the FAA throughout this process. We are putting these lessons into action as we prepare for the first launch of Rocket 4.
